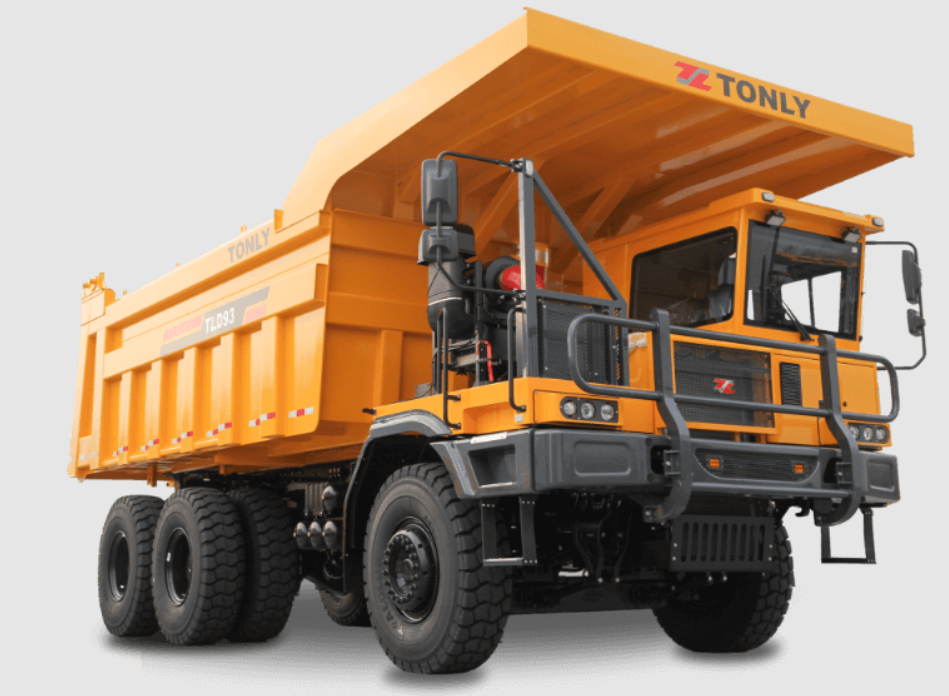

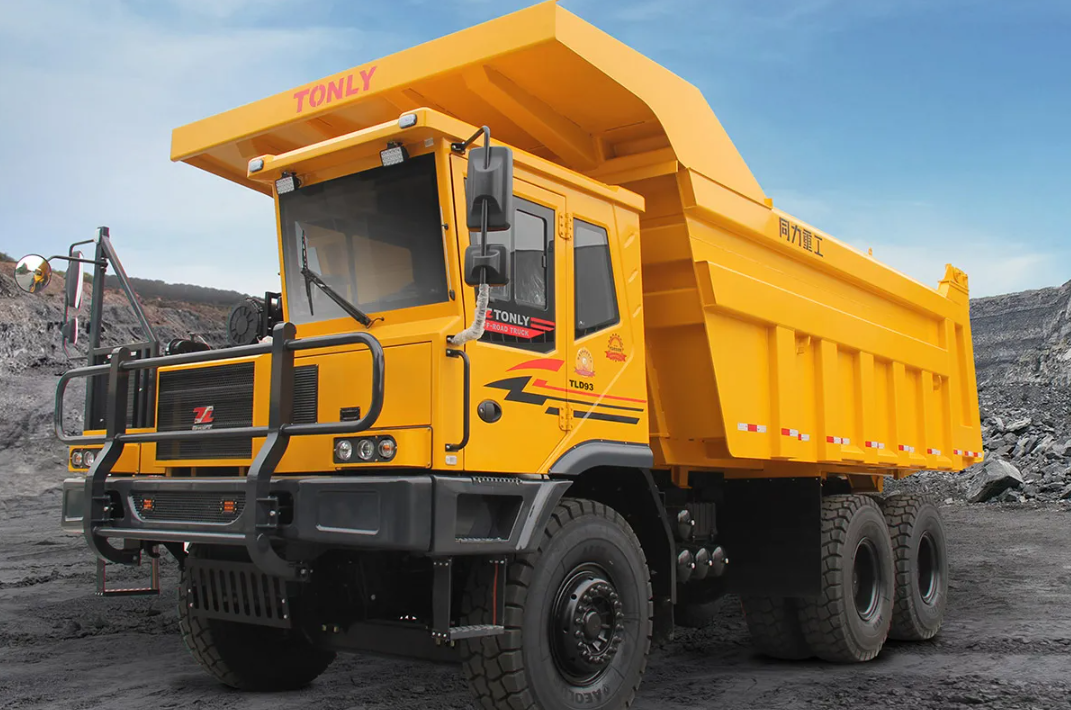

The TLD93 Automatic Off-Road Dump Truck is specifically designed for harsh working environments such as open-pit mines, large-scale construction sites, and earthmoving projects. With a perfect combination of power, durability, and efficiency, it has become the preferred choice for global customers requiring heavy-duty off-road transport.
Equipped with a high-performance diesel engine and advanced transmission system, the TLD93 delivers strong power output and smooth operation even under full load. Its reinforced chassis and specialized suspension system ensure excellent stability and passability on rough terrain, while the optimized fuel consumption design helps reduce operational costs.
| Model | TLD93A | TLD93B | TLD93M |
| Rated payload(t) | 70 | 70 | 70 |
| Engine(hp) | 530 | 560 | 560 |
| Dump body capacity(m³) | 36 | 36 | 65 |
| Transmission | FC6A250DPRT Automatic Transmission |
Automatic Transmission | |
| Axle load(t) | 25+40+40 | 25+40+40 | 25+40+40 |
| Cab | Single-side Rigid Cab(left or right steering wheel optional) | ||
| Suspension system | Front air suspension + rear leaf spring suspension | ||
| Steering system | Fully hydraulic Steering | ||
| Tire | 16.00-25 | ||
| Max.speed(km/h) | 40 | ||
| Drive mode | 6×4 | ||
