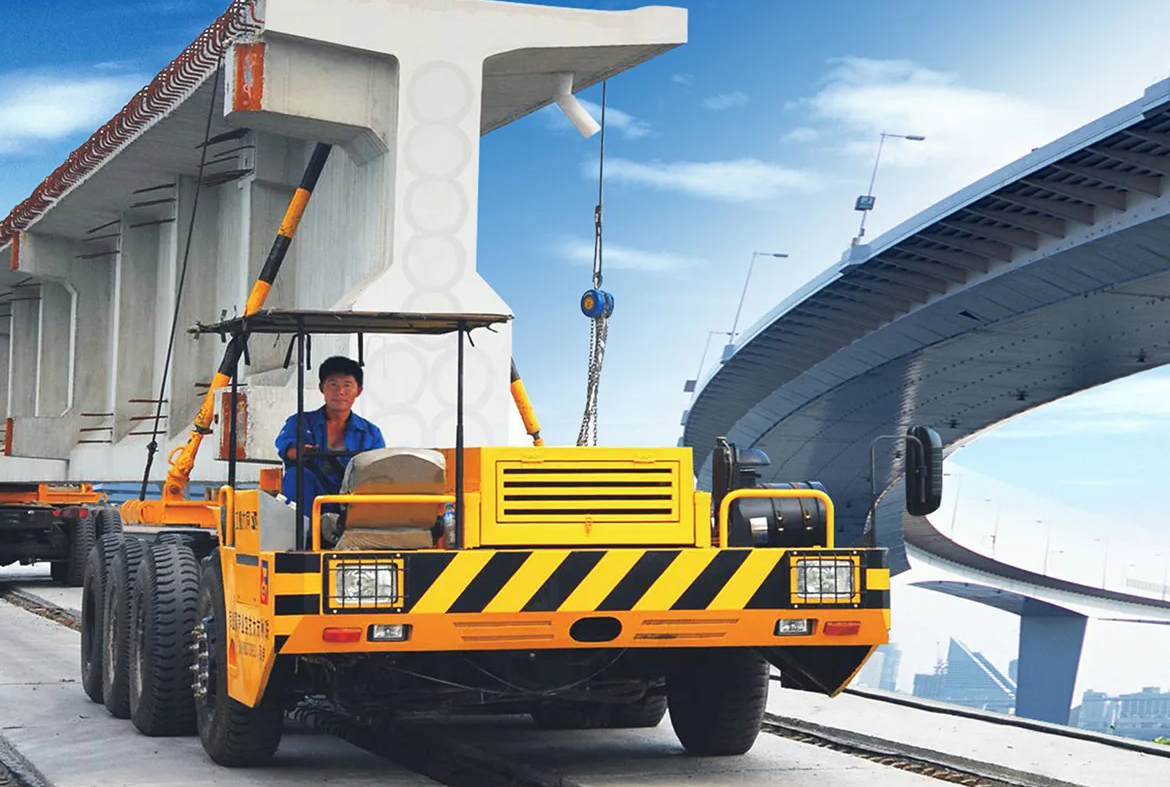

The Trailer TLQ102 Off-Road Bridge Beam Transport Truck is specifically designed for harsh working environments such as open-pit mines, large-scale construction sites, and earthmoving projects. With a perfect combination of power, durability, and efficiency, it has become the preferred choice for global customers requiring heavy-duty off-road transport.
Equipped with a high-performance diesel engine and advanced transmission system, the TLQ102 delivers strong power output and smooth operation even under full load. Its reinforced chassis and specialized suspension system ensure excellent stability and passability on rough terrain, while the optimized fuel consumption design helps reduce operational costs.
| Model | TLQ102 |
| Rated payload(t) | 180 |
| Kerb weight(t) | 11 |
| Max. speed (unladen)(km/h) | ≥55 |
| Max. speed (laden)(km/h) | ≥17 |
| Simultaneous beam loading mechanism(optional) | 0-6m/min |
| Dimension(mm) | 7500/2960/1500 |
| Wheel track(mm) | Front:2364 Middle/rear:2248 |
| Turntable height(mm) | Unladen:1390 |
| Distance between turntable and front end | 5515 |
| Min. ground clearance(mm) | 270 |
| Turning radius(m) | 10.5 |
| Transverse/longitudinal slope | Unladen:21%/15% Laden:9%/6% |
